Coordinate Measuring Machine

Precision Co-ordinate Measuring Machine (CMM) for in-house inspection / scanning Supported by

LK CAMIO STUDIO Measurement Application Software Suite


LK Ceramic Bridge, Ceramic Spindle, 3D CNC
Coordinate Measuring Machine

Model Integra 10.7.6 incorporating LK2000 CNC Controller


lk ceramic bridge

    Specifications

  • Measuring capacityX-axis1016 (mm); Y-axis 711 (mm); Z-axis 610(mm)
  • Measuring Accuracy Linea r = 1.75+L/300 (L is the Measured Length in mm)
  • Measuring Accuracy Volumetric = 2.00+L/250 (L is the Measured Length in mm)
  • Repeatability=1.75microns
  • Resolution of read out system=0.0005 (mm)
  • PH10M Renishaw Motorised Probe Head Kit with Auto-Joint Probe Mounting
  • TP200 Renishaw Basic Probe & Stylus Kit


LK CAMIO STUDIO Measurement Application Software Suite


lk camio studio

    Modules

  • CAMIO STUDIO Software Package (incl. IGES import)
  • CAMIO STUDIO Advanced Programming Tools Package
  • CAMIO VDA file import Module
  • CAMIO Touch Trigger Probe Scanning Software Package
  • CAMIO Graphical Reporting & Analysis Application Software Package
  • CAMIO Digigraph Profile Reporting & Airfoil Blade Analysis Application Software Package
  • CAMIO Launch Pad Designer Operator Software Package
  • CAMIO Free form Digitising/Scanning (FFD) and Reverse Engineering Application Software Package

Profile Projector

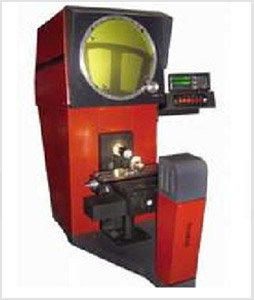

Optomech Profile Projector, Model 400H


profile projector

    Specifications

  • Screen Dia 400mm with Crosswire Work table 475mm x 125mm
  • Work Table Swivel 15 Degrees Measuring Traverse X-Axis 200 mm x Y-Axis 100 mm
  • Magnification/Projection Lens 10X Magnification Accuracy Contour/Profile Illumination ± 0.10% Surface Illumination ± 0.15% Scale Resolution 0.001mm (Electronica make)
  • Rotary Protractor Resolution 2 Minutes of arc Focus Travel 75mm
  • Green Filter, Profile Illumination, Surface Illumination Digital Read-Out (DRO)
  • System Smart 2003 (Electronica make)
  • Work Piece Capacity 300mm Between Centers 150mm Diameter
  • Work Piece Load 20Kg Illumination Source 24V 150W Tungsten Halogen Lamp.
